Tester

by Николай Юрзин


Tools

free

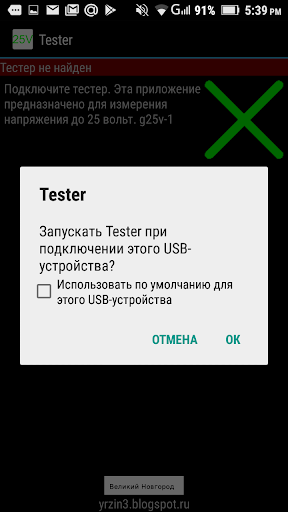

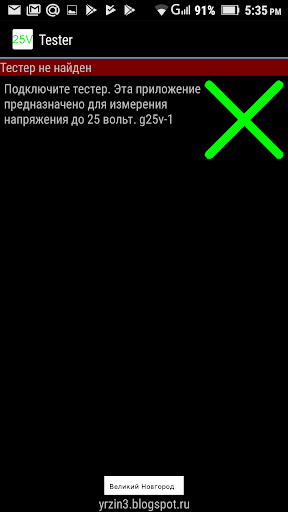

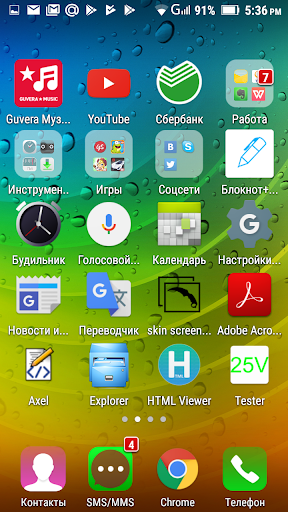

Appointment Designed to measure DC voltage up to 25 V. Composition Consists of a harness, a set-top box (device), a smartphone or tablet (host), a device program and a host program. The device and operation of the tester The harness is used to connect the tested item to one of the analog channels of the device. The device converts the measured parameters of all five channels into a digital code and periodically transmits it to the host at the request of the host. This application uses only the voltage measurement channel. The program corresponding to the given parameter processes the received code and displays the device. Using the tester The application is assumed to be installed.The description is for Lenovo A5000 smartphone. 1 Click on the icon. 2 A window will appear with text that says "Tester not found". 3 Connect the device to the micro USB jack. 4 In the window that appears"TesterRun Tester whenconnecting this USB-devices? "tap OK. 5 Connect, if not already connected, the harness to one of the five lead pairs listed at the end of the application name on the green line. For example, the name of this application is 25V-1. 1 - number of a pair of conclusions; 25V - range of measured voltage 25 V. 6 Observing the polarity, measure the voltage. 5 terminals connected together, minus the measured voltage.See the link for more details:https://docs.google.com/document/d/1DfuiC4MeT3k3592f0B3X-2DTDFIuwxH6MpCfY_RZUZ4/edit?usp=sharing
